Vibration Truck

Improve Your Audio Workflow with the Vibration 45’ Audio Production & Multitrack Truck

/in /by

The Vibration 45’ Audio Production & Multitrack Truck is a top-tier mobile audio control room built to handle the most demanding broadcast, concert, and recording needs. Operated by TNDV, a division of Live Media Group Holdings, Vibration provides studio-grade 5.1 surround mixing, expansive multitrack recording options, and dual mix booths. This compact yet powerful setup allows you to capture and produce high-quality audio for anything from music festivals and sports events to corporate productions, all while on the move.

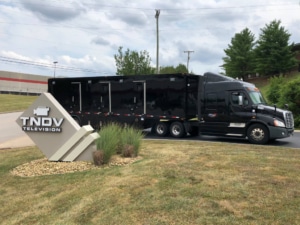

vibration mobile truck Measuring 45 feet long, 14 feet wide when expanded, and 13.5 feet high, Vibration has a gross vehicle weight of 67,000 pounds. Its power requirements are 3 Phase at 150 Amps and 208 Volts, with 100 feet of feeder cable and camlock connectors included. The truck’s configuration maximizes interior space for engineers, producers, and talent, creating a comfortable environment that supports seamless production workflows.

At the heart of Vibration is a Studer Vista 9 Digital Mixing Console offering 62 faders, 344 DSP inputs, and full 5.1 surround sound capabilities. It supports 96×48 analog, 64×64 AES, and 256×256 MADI channels, and can connect to up to four 64×32 fiber stageboxes (with two already onboard). For multitrack recording, Vibration features two Avid Pro Tools rigs that each support up to 128 channels, as well as four JoeCo Black Box recorders that each handle 64 channels. A Waves SuperRack Server with Mercury Bundle support further enhances processing and mixing options. Monitoring and conversion are handled by Fostex speakers, plus SDI-HDMI converters, Fiber Rattler sets, and Decimator MD-Cross Converters to ensure clear, accurate audio in any scenario.

Vibration includes dual control booths designed for simultaneous dual mixes, such as front-of-house and broadcast, or for other specialized purposes like production management or on-the-fly video coordination. The truck also comes with multiple fly-pack systems that enable hybrid production setups, supporting both audio and video needs within one cohesive operation. For recording workflows, Vibration houses an AJA KiPro HDD Recorder and a total of 12 recording channels through the combined KiPros and JoeCo units, allowing you to capture, archive, and synchronize audio across digital and analog signal paths.

To match the console’s professional mixing capabilities, Vibration carries a robust microphone inventory. It includes eight Sennheiser shotgun microphones, four Telefunken M80 handheld mics, two Audio-Technica wired lavaliers, two Audio-Technica AT2021 condensers, two AKG C214 condensers, two Audio-Technica BP4073 shotguns, two Audio-Technica AT4022 condensers, and two Mojave MA-101 condensers. These options allow you to cover everything from ambient crowd sounds to precise vocal capture for on-stage performances or interviews.

vibration unit

A reliable communication infrastructure is crucial for smooth productions. That’s why Vibration is equipped with an RTS Zeus 24-Port Digital Matrix, four RTS PL channels, two RTS telephone interfaces, and two Biscuit Boxes, ensuring everyone from the engineering crew to on-air talent stays in sync. For routing and signal conversion, the truck includes a 32×32 AJA Kumo Video Router, a 3×3 audio embed/de-embed unit, two DirectOut Andiamo2.XT analog/AES-to-MADI converters, one DirectOut M.1k2 16-port MADI router, and two AJA FS1x MADI sample rate converters. These components maintain signal integrity and proper synchronization in complex audio environments.

Vibration’s extensive cable inventory supports flexible event layouts. It carries 2250 feet of DT-12 cable, plus a 1000-foot and a 500-foot TAC-12 fiber mult. This allows for extended runs, remote I/O setups, and multi-location coverage without sacrificing signal quality. By bringing together broadcast-ready 5.1 surround sound, high-capacity multitrack recording, and a carefully designed control space, Vibration stands out as a flagship mobile audio unit for live music festivals, major TV specials, sports productions, and beyond. It operates like a full-fledged studio but travels as easily as a standard truck, offering a turnkey solution that can adapt to nearly any live or recorded production scenario.

Vibration is ideal for music and concert recordings, immersive live network broadcasts, remote multitrack sessions that feed into post-production, and a variety of special events or corporate AV setups. In every application, it delivers clarity, power, and reliable performance. For more details or to book the Vibration 45’ Audio Production & Multitrack Truck, contact TNDV at 877-959-8638 or reach out via contact@tndv.com.

Mobile Unit Snapshot: MU-11 53’ 3G Single Expando Production

/0 Comments/in /by

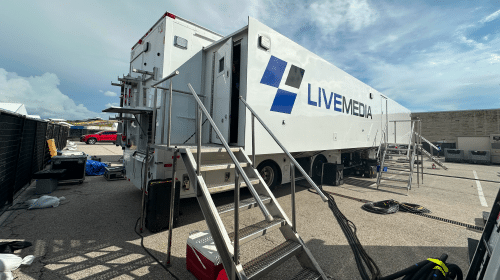

The MU-11 53’ 3G Single Expando Production Truck is the latest innovation in mobile production technology, setting a new standard for large-scale UHD and HDR event coverage. Operated by TNDV, a division of Live Media Group, MU-11 is engineered to deliver unparalleled flexibility, advanced technical capabilities, and future-proof infrastructure for the most demanding live events, broadcasts, and studio-grade recordings. Whether it’s a major sports broadcast, a globally streamed concert, or a complex corporate production, MU-11 is built to meet the challenge.

Measuring 57 feet in length and stretching to a full 78 feet when connected to its tractor, MU-11 is a true heavyweight at 80,000 pounds. Once expanded, it offers an interior width of 13.5 feet, providing a spacious, comfortable working environment for production and engineering teams. The expando section, measuring 49 feet long and 5 feet wide, creates a versatile command center capable of supporting sophisticated workflows that demand both power and precision.

At the heart of MU-11’s production capabilities is a Grass Valley K-Frame 3G Switcher, paired with a Kayenne 4-stripe, 35-button panel. With 7 mix effects, 96 inputs, 48 outputs, FlexiKey layering, Double Take functionality, advanced chroma keying, and a full-featured image store with motion graphics, the switcher enables seamless management of even the most intricate live productions. Supporting the video operations is a robust replay and playback ecosystem anchored by three EVS XTVia 12-channel LSM servers, a 6-channel EVS XSVia Spotbox, and a 10G-capable EVS X-file3 system, all networked through an EVS Via Xhub. With wiring for up to 70 channels of EVS, MU-11 ensures that no critical moment is ever missed.

Routing and signal distribution are equally impressive. MU-11 houses an Evertz EQX 3G Video Router with a massive 500×722 matrix, featuring 96×96 channels of embedded and de-embedded audio and 32×32 fiber connectivity for external I/O needs. The truck also integrates an Evertz EMR Audio Router with 1856×1600 MADI, 192×192 AES, and 288×288 analog audio routing, complemented by 70 frame syncs across its systems, including both For-A HDR frame synchronizers and EVS Neuron HDR units with custom LUT and color correction capabilities. For multiviewing, MU-11 supports up to 416 customizable windows, ensuring that directors and producers have complete situational awareness across all feeds.

Camera acquisition is handled by an elite fleet of twelve Sony HDC3500 UHD-HDR cameras, paired with Sony HDLA1505 large lens adapters and a powerful lens package that includes long-throw Fujinon 107x, 99x, and 72x field lenses, along with a versatile selection of wide-angle and hybrid lenses. Vinten Vector 750 and Cartoni Focus 22 pan heads provide robust camera support, and the truck is wired to support up to 24 camera control units, giving productions the scalability they need for events of any size.

On the audio side, MU-11 is equipped with a Calrec Apollo Digital Surround Sound Console, boasting 144 faders across 12 dual-layer banks and offering 128×128 analog I/O, 192×192 mono AES I/O, and 512×512 MADI I/O. Precision loudness monitoring is handled by a Daysequerra ILM 8 meter, ensuring broadcast audio meets all loudness compliance requirements and delivers a consistent, polished sound to audiences.

Communication across the production team is vital, and MU-11 is outfitted with a 240×240 RTS Adam Matrix Intercom system that integrates 64 OMNEO channels, 16 RVON IP channels, 64 MADI channels, and 12 powered partyline and IFB channels. Multiple RTS belt packs, IFB belt packs, and Beyer DT108 and DT109 headsets are deployed throughout the unit, ensuring clear and reliable communication for both technical staff and talent.

Supporting the AV needs of complex productions, MU-11 carries an extensive inventory of announcer headsets, studio boxes, handheld microphones, shotgun microphones, stereo microphones, SDI monitors, and portable LED lighting kits. Cable infrastructure is equally comprehensive, with 7000 feet of SMPTE fiber, 3800 feet of DT12 audio mults, thousands of feet of coaxial cable, TAC fiber runs, and a variety of audio snakes, ensuring that connectivity needs are never a limitation.

What truly sets MU-11 apart is its ability to combine traditional broadcast engineering with next-generation UHD, HDR, and hybrid IP/SDI workflows. With native 3G switching, 70 channels of EVS replay, massive routing capacity, and a communications network built for modern remote operations, MU-11 is built to deliver flawless, broadcast-quality productions on a massive scale. From major sports championships and high-profile music awards shows to multi-platform live streams and corporate global broadcasts, MU-11 enables teams to produce stunning, reliable content that captivates audiences and meets the highest standards of production excellence.

For more information or to book the MU-11 53’ 3G Single Expando Production Truck, contact TNDV at 877-959-8638 or via email at contact@tndv.com.



Mobile Unit Snapshot: MU-10 53’ Single Expando Production Truck

/0 Comments/in /by

The MU-10 53’ Single Expando Production Truck is a state-of-the-art mobile facility engineered to deliver broadcast-quality video and audio production for large-scale live events, national broadcasts, and sophisticated studio productions. Operated by Live Media, a division of Live Media Group, MU-10 brings together the highest-grade switching, recording, routing, and camera systems to ensure professional-grade quality in even the most demanding environments. Designed for scalability, flexibility, and reliability, MU-10 serves as a fully capable control room on wheels, supporting multi-camera workflows and complex live production needs with ease.

Measuring 54 feet in length and stretching to 79 feet overall with its tractor, MU-10 provides a rugged, expandable setup that maximizes workspace without compromising mobility. Its road width of 8.5 feet extends to 12.5 feet when deployed, and with a gross vehicle weight of 80,000 pounds, it creates a stable environment where production teams can operate with precision. The expansion extends 32 feet in length and 4 feet in width, creating an efficient, ergonomic workspace built for seamless collaboration across video, audio, replay, and transmission teams.

The heart of MU-10’s video production power lies in its Grass Valley Kayenne Classic Switcher, which features a Kayenne 4-stripe, 35-button panel and delivers 4.5 M/E capabilities. With 75 inputs and 48 outputs, FlexiKey functionality, Double Take mode, advanced chroma keying, and multiple DPM effects engines, the switcher is designed to handle complex, multilayered productions with ease. Recording and playback operations are supported by a fleet of EVS servers, including three XT3 6-channel LSM servers, an XT3 4-channel replay-only server, and an XS 4-channel spotbox controlled via Lance Controller. An EVS X-file3 transfer server and an X-hub3 media sharing hub provide fast file transfers and centralized content management, with the truck wired to support up to five 6-channel EVS units and three 4-channel EVS units simultaneously.

Routing infrastructure is equally robust, with a 288×512 Grass Valley Trinix video router and a 256×256 Concerto audio router ensuring seamless signal distribution throughout the truck. Embedding and de-embedding are handled through a 32×32 matrix, while the system includes sixteen fiber I/O ports for external connectivity. Thirty For-A up/down/cross frame synchronizers with color correction capabilities and three transmission processors provide essential format conversions and fine-tuning for live workflows. With 228 multiviewer windows available across operations, MU-10 offers production teams unmatched situational awareness and flexibility.

Advanced Camera Acquisition System

Camera acquisition is powered by ten Grass Valley LDX 82 Triax Elite cameras, supported by six Grass Valley LDK Super XPanders with seven-inch viewfinders and six LDK4426 fiber triax converters for maximum transmission versatility. The lens package includes a Fujinon 101×8.9 HD lens with stabilizer, three 88×8.8 HD stabilized lenses, two 72×9.3 HD lenses, two 22×7.8 servo zoom lenses, two 18×5.5 hybrid wide-angle lenses, and one 13×4.5 wide-angle lens, ensuring comprehensive coverage from long-range telephoto shots to wide-field captures. Cameras are mounted on a combination of Vinten Vector 750H pan heads and Cartoni Gamma tripods, and the truck is wired to support up to fourteen camera control units, providing plenty of room for scalable operations.

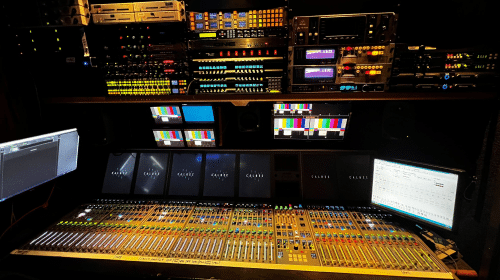

Audio production inside MU-10 is managed through a Calrec Artemis Lite console featuring Bluefin 2 technology and Concord automation. With 56 faders and extensive I/O capacity, including 96×96 analog, 96×100 AES, 192×192 MADI, and 64×64 Dante channels, the console delivers pristine audio mixing and routing for even the most complex productions. Integrated Waves Broadcast Suite support ensures access to powerful digital signal processing tools for broadcast-standard mixes.

For internal and external communication, MU-10 is equipped with a 128×128 RTS Adam Matrix intercom system, offering 16 Rvon IP channels, 8 powered party line channels, and 6 powered IFB channels. Sixteen dual-listen BP325 beltpacks and eight IFB 4030 boxes, along with a robust inventory of headsets and telephone interfaces, ensure that every team member remains connected and in sync throughout production.

MU-10 also includes a comprehensive A/V support inventory, including HMD26 announcer headsets, Studio Tech announcer boxes, Sennheiser MD46 stick microphones, and a range of Sennheiser MKH shotgun and stereo microphones for high-quality field and booth audio capture. The truck carries portable SDI monitors, LED light kits, and a broad cable inventory featuring triax, SMPTE fiber, DT12 multicables, XLR, coaxial, and single-mode fiber runs, providing complete infrastructure for even the most complex production layouts.

Book MU-10 for Your Next Live Production

What truly makes MU-10 stand out is its focus on resilience and scalability. Featuring redundant signal paths, fully integrated multiviewing, advanced communications, and a camera system capable of adapting to a wide range of live environments, MU-10 is an indispensable solution for network sports broadcasts, major concert tours, award shows, large-scale corporate events, and even religious and live-streaming productions. Every component, from switchers to servers to cameras, has been selected to provide maximum flexibility and performance, enabling production teams to create unforgettable content in any setting.

For more information or to book the MU-10 53’ Single Expando Production Truck, contact TNDV at 877-959-8638 or via email at contact@tndv.com.
