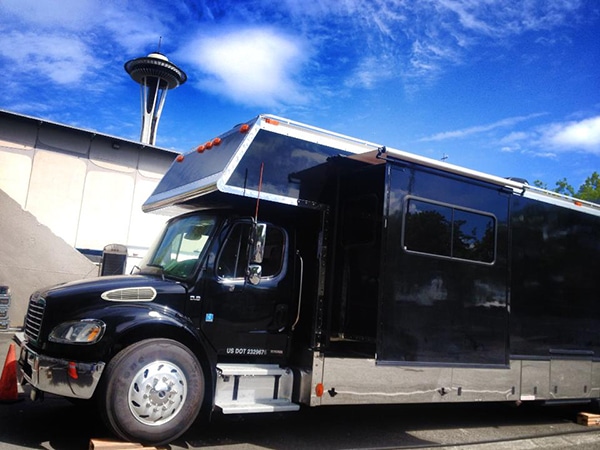

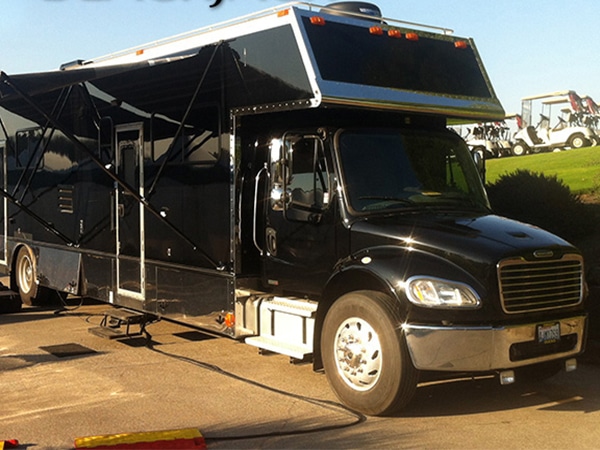

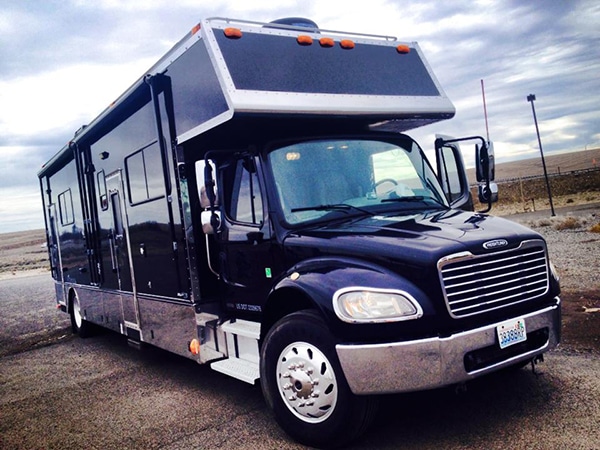

Destination 40’ HD Expando Overview

Destination 40’ HD Expando is a compact yet powerful mobile production unit designed for live sports, corporate events, entertainment productions, and broadcasts. Equipped with a Ross Carbonite switcher, professional camera systems, and a broadcast-ready audio suite, Destination is built for flexibility and efficiency. Operated by TNDV, part of the Live Media Group family, this unit provides exceptional production capabilities for mid-sized live events.

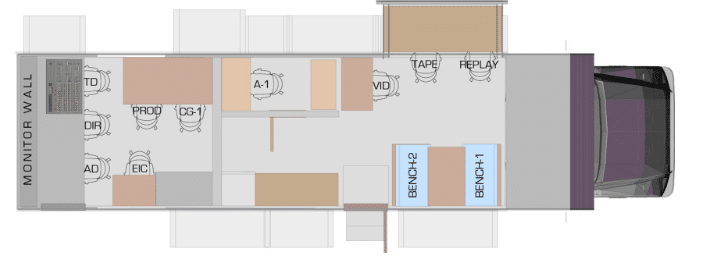

Dimensions and Configuration

Destination is designed for streamlined operation in diverse event environments, measuring 45 feet in length, 13.8 feet in width (expanded), and 13.5 feet in height, with a gross vehicle weight of 34,000 pounds.

It operates on a single-phase 150-amp power system (208 volts), 2 hot legs (1 neutral/1 ground) with 200 feet of feeder cable and camlock connectors, ensuring consistent power and reliability at any venue.

Video Production Technology

At the heart of Destination’s video production capabilities is the Ross Ultrix Carbonite Switcher, delivering high-end video processing and control. Key features include:

• 2 full M/Es + 4 mini M/E’s24 ifor multi-camera control and switching.
• 24 inputs and 10 outputs, providing flexible video routing. (FSFC License active)
• 2 switcher multiviewers
• 6 keyers per ME, 2 chroma keyers, and 4 media stores

For replay and recording, Destination includes:

• EVS XT3 6-channel LSM
• EVS XFile3
• AJA HELO H.264 Recorder for live streaming.
• 6 AJA KiPro Rack Recorders (wired for up to 12 recorders).

This broadcast-quality switching and replay system makes Destination ideal for live events that require real-time video production and playback.

Camera System

Destination is wired for up to 6 CCUs and features five Hitachi SKk-HD1200 SMPTE camera chains, supporting 1080p, 1080i, and 720p resolutions at 59.94, 29.97, and 23.98 frame rates. Additional camera specifications include:

• Two handheld viewfinders and three 7-inch studio LCD viewfinders.
• Two Fujinon 20x ENG lenses for close-ups and long-range shots.
• Two Fujinon 13×4.5 wide-angle lenses for immersive coverage.
• TAC Fiber Adapters Available for enhanced flexibility.

This versatile camera setup ensures superior image quality, making Destination perfect for concerts, sports events, and corporate productions.

Audio Capabilities

Destination is equipped with a Yamaha DM7, providing studio-quality audio mixing. Key features include:

• 28 faders and 120 DSP inputs for enhanced control.
• 32×16 analog and 64×64 MADI support.
• 144×144 Dante

Yamaha fiber stageboxes available.

Additional audio equipment includes:

• Two Fostex Speakers and three Throwdown HD Monitors.
• Four SDI-HDMI converters and four Fiber Rattler sets.
• Two Decimator MD-Cross Converters for audio processing.

With high-quality audio mixing and routing, Destination delivers pristine sound clarity for live event productions.

Routing and Multiview

Destination’s signal routing system is powered by a 72×72 Ross  Ultrix 3G Video Router, featuring:

• 2 configurable integrated multiviewer outputs for real-time monitoring.
• 8 HD frame syncs for seamless video transitions.

This advanced signal processing system ensures a smooth and efficient production workflow.

Communication Infrastructure

Destination is equipped with an RTS Odin 64-Port Digital Matrix, providing clear and reliable communication across production teams. Key features include:

• 4 RTS PL channels for internal communication.
• 2 RTS telephone interfaces for external coordination.
• 4 wet IFB channels for talent communication.
• 2 Biscuit Boxes for expanded communication options.
• 2 VoIP phone lines for remote connectivity.

This advanced communication setup ensures flawless coordination in high-pressure live productions.

Graphics Capabilities

Destination is wired for a dual-channel graphics system, with additional graphics options available. The Ross XPression Dual-Channel Graphics System supports:

• Live branding and lower thirds.
• Dynamic overlays and real-time animations.
• Scoreboards and sponsor graphics.

Additional graphics options available.

Cable Inventory

Destination includes an extensive cable inventory, ensuring seamless integration into any production environment:

• 3200 feet of hybrid fiber optic camera cable.
• 750 feet of DT-12 cable.
• One 1000-foot TAC-12 fiber mult.
• One 500-foot TAC-12 fiber mult.

This comprehensive cable inventory provides the flexibility needed to accommodate any venue layout.

Why Destination Stands Out

Destination is a premium choice for mid-sized productions, offering top-tier video processing, dynamic camera control, and professional audio mixing. Its compact yet powerful expando design makes it ideal for multi-camera productions requiring flexibility and efficiency. As part of TNDV and Live Media Group Holdings, it is backed by an expert team ensuring flawless execution.

Applications

Destination is perfect for:

• Sports broadcasts requiring multi-camera coverage and real-time replay.
• Concerts and live events needing broadcast-quality video and premium audio production.
• Corporate conferences and presentations with high-end streaming and recording capabilities.
• Live award shows and entertainment productions requiring seamless execution.

Technical Specifications

Conclusion

Destination 40’ HD Expando is a versatile, efficient, and fully optimized mobile production unit, designed for live sports, entertainment, and corporate productions. With industry-leading video and audio technology, seamless communication infrastructure, and a compact yet powerful design, Destination delivers broadcast-quality results with reliability and precision.

For more information or to book Destination for your next event, contact TNDV today at 877-959-8638 or email contact@tndv.com.

Equipment compliment is subject to change to accommodate specific needs.
