Sallie 40’ HD Expando Overview

Sallie 40’ HD Expando is a highly adaptable mobile production unit designed for live sports, corporate events, entertainment productions, and broadcasts requiring top-tier HD video and audio performance. Built for efficiency and flexibility, Sallie features advanced video switching, high-end camera capabilities, and premium audio processing. Operated by TNDV, a division of Live Media Group, this expando unit provides exceptional broadcast quality in a compact yet powerful package.

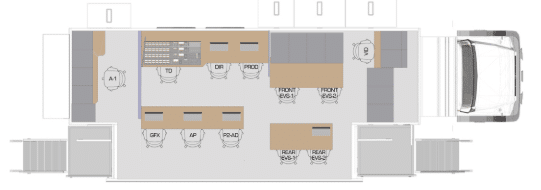

Dimensions and Configuration

Sallie is designed to maximize production capabilities while remaining mobile and adaptable to different venue sizes.

• Length: 45 feet
• Width: 13.8 feet (expanded)
• Height: 13.5 feet
• Gross Vehicle Weight: 48,000 lbs

Sallie operates on a single-phase 150-amp power system (208 volts) with 150 feet of feeder cable and camlock connectors, ensuring reliable operation at any event location.

Video Production Technology

At the core of Sallie’s video system is the Grass Valley Kayenne Switcher, providing powerful live video production capabilities. Key features include:

• 3-Stripe 25-Button Control Panel with auxiliary functions.
• 48 inputs and 24 outputs for seamless video integration.
• 3.5 M/Es, with FlexiKey, Double Take, six keyers per ME, iDPMs, and ImageStore.

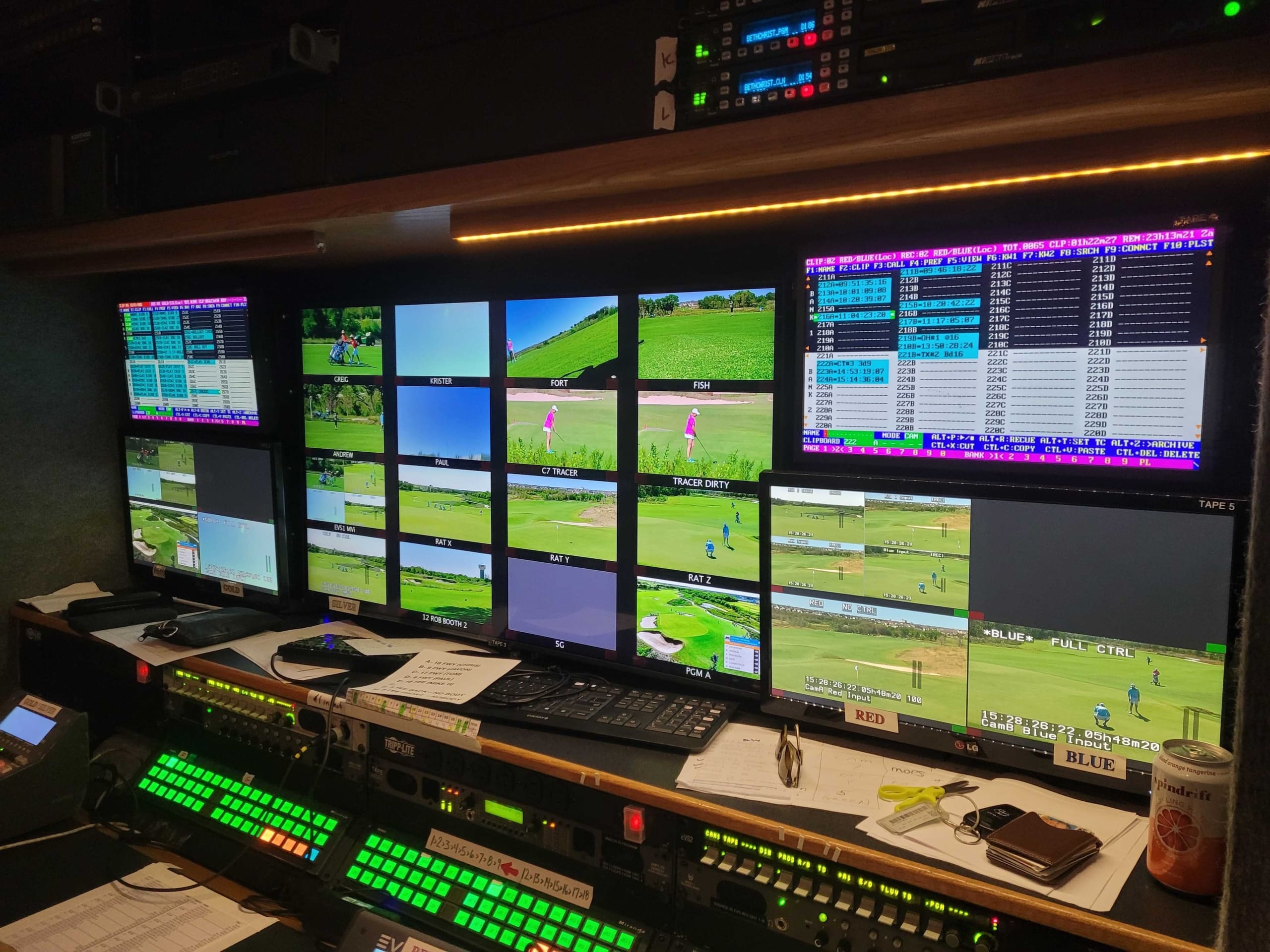

For replay and recording, Sallie includes:

• Two EVS XT2 6-Channel LSM Servers.
• One EVS XT2 4-Channel Spotbox.
• One EVS X-File 3 for high-speed file transfers.
• One AJA HELO H.264 Recorder for live streaming.
• Twelve AJA KiPro Rack Recorders for multi-source recording.

With broadcast-level switching and replay capabilities, Sallie ensures smooth production workflows for live events.

Camera System

Sallie is wired for up to 8 CCUs and includes eight Grass Valley LDX-80 Series Triax Cameras, delivering 1080i and 720p resolution at 59.94 frame rates. Additional camera features include:

• Five handheld viewfinders and seven 7-inch studio LCD viewfinders.
• Five Fujinon 20x ENG lenses for long-range shots.
• One Fujinon 13×4.5 wide-angle lens for expansive coverage.
• TAC Fiber Adapters Available for expanded compatibility.

This versatile camera package is optimized for sports, concerts, and corporate event productions, ensuring high-quality image capture.

Audio Capabilities

Sallie is equipped with a Calrec Artemis Digital Mixing Console, offering broadcast-grade audio mixing and flexibility. Key specifications include:

• 32 faders and 340 DSP inputs for superior control.
• 32×32 analog and 128×128 MADI support.

Additional audio equipment includes:

• Two Fostex speakers for monitoring.
• Three Throwdown HD Monitors.
• Four SDI-HDMI converters and four Fiber Rattler sets.
• Two Decimator MD-Cross Converters for audio signal management.

With premium audio mixing and signal processing, Sallie delivers clear, high-quality sound for every production.

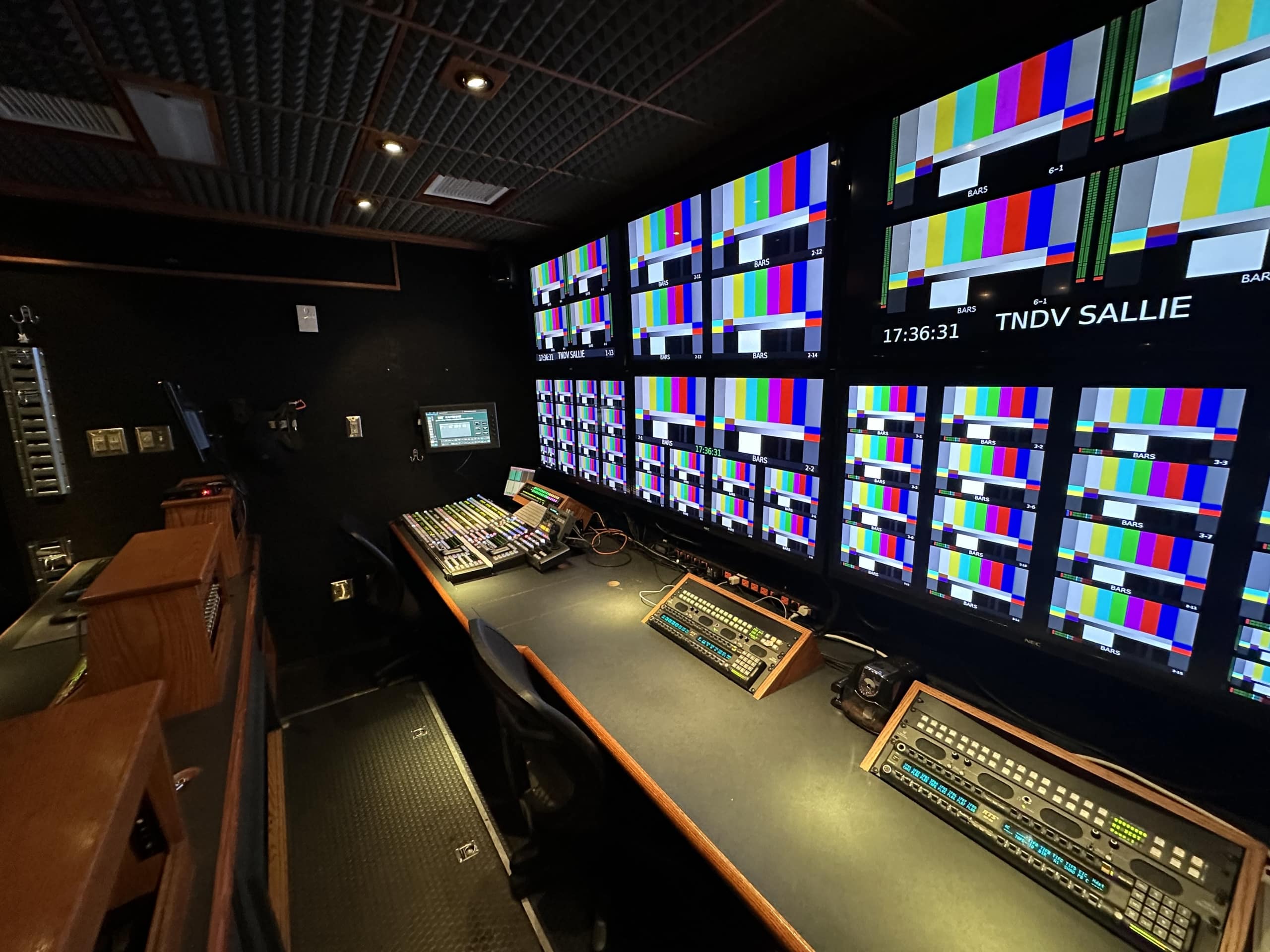

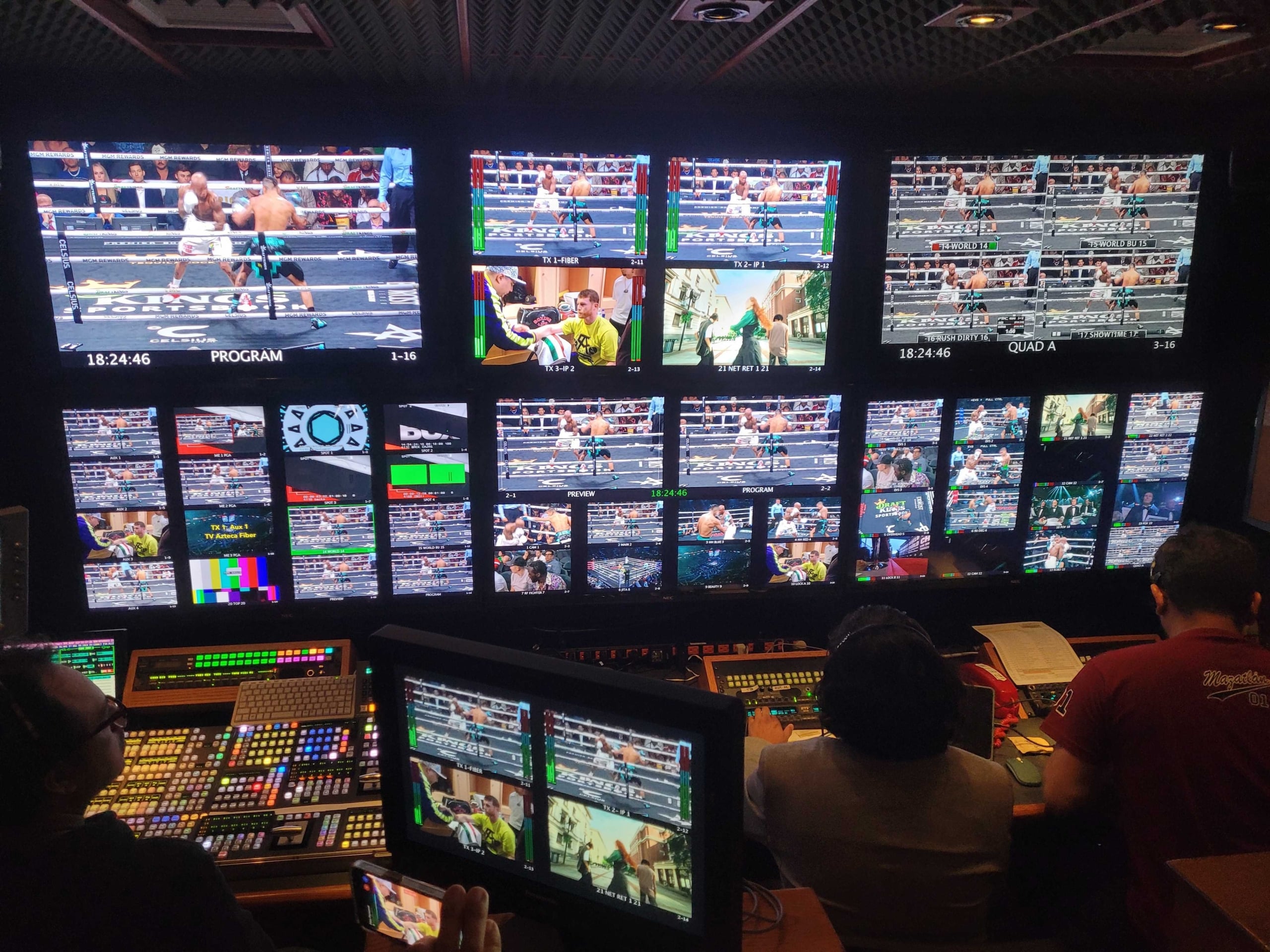

Routing and Multiview

Sallie’s signal routing system is powered by a Grass Valley NV8140 144×252 Video Router, featuring:

• 32×32 audio embed/de-embed capabilities.
• 10 configurable integrated multiviewer outputs.
• Two quad split multiviewers for advanced monitoring.
• 12 HD frame syncs for precise video processing.
• TSL Tallyman Tally Interface for seamless production coordination.

With advanced routing and monitoring systems, Sallie ensures a smooth and efficient production workflow.

Communication Infrastructure

Sallie is equipped with an RTS ADAM-M 64-Port Digital Matrix, ensuring clear and reliable communication among production teams. Key features include:

• 12 RTS PL channels for internal crew communication.
• Four RTS telephone interfaces for external calls.
• Three QKT telephone interfaces for additional connectivity.
• Eight wet IFB channels for talent communication.
• Two Biscuit Boxes for expanded control.
• Two VoIP phone lines for remote coordination.

This communication system is designed for live productions requiring real-time coordination across multiple teams.

Graphics Capabilities

Sallie is wired for dual-channel CG systems, including:

• One Ross XPression Dual-Channel Graphics System (SW version 10.5).

This professional-grade graphics system supports:

• Live branding and overlay graphics.
• Real-time animations and scoreboard integrations.
• Dynamic lower thirds, sponsor graphics, and video inserts.

Cable Inventory

Sallie is fully stocked with an extensive cable inventory, ensuring seamless setup for any production environment. Inventory includes:

• 3000 feet of Triax camera cable.
• 1200 feet of DT-12 cable.
• Two 500-foot TAC-12 fiber mults.
• Two 100-foot TAC-12 fiber mults.

This comprehensive cable inventory ensures smooth signal transmission and connectivity.

Why Sallie Stands Out

Sallie is engineered for mid-to-large-scale HD productions, delivering broadcast-quality video, dynamic camera support, and professional audio processing. Its expando layout provides a spacious working environment, making it ideal for complex multi-camera productions. As part of TNDV and Live Media Group Holdings, it is backed by a team of industry professionals ensuring flawless execution.

Applications

Sallie is the perfect solution for:

• Sports broadcasts with multi-camera coverage and instant replay capabilities.
• Live concerts and events requiring premium video and audio production.
• Corporate productions and conferences needing professional streaming and presentation capabilities.
• Award shows and entertainment events requiring seamless execution and high-end production quality.

Technical Specifications

Conclusion

Sallie 40’ HD Expando is a powerful, efficient, and fully optimized mobile production unit designed to deliver broadcast-quality video and audio for live productions. With state-of-the-art equipment, industry-leading routing and communication systems, and expert technical support, Sallie is the perfect choice for professional productions across multiple industries.

For more information or to book Sallie for your next event, contact TNDV today at 877-959-8638 or contact@tndv.com.

Equipment complement is subject to change to accommodate specific needs.
