MU-24 | 40’ Single Expando Production Truck

Compact Powerhouse for Regional Broadcasts, Live Events & Mobile Studios

The MU-24 is a high-efficiency, single-expando mobile unit designed for quick deployment and streamlined operation in tight production environments. Despite its compact footprint, MU-24 delivers full broadcast capabilities—including 5 M/E video switching, multi-camera UHD workflows, and full EVS replay. Perfect for mid-size sports, corporate shows, remote newscasts, or music broadcasts, MU-24 delivers big capabilities in a smaller, more agile frame.

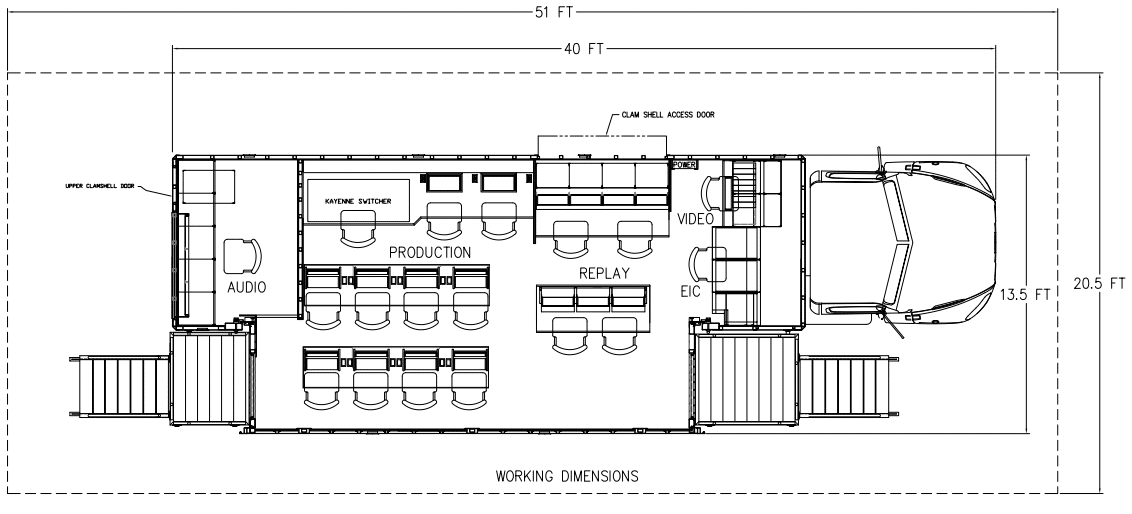

Vehicle Specifications

• Trailer Length: 40 ft
• Operational Footprint: 48 ft (L) x 16 ft (W) x 13.5 ft (H)
• Gross Vehicle Weight: 45,000 lbs
• Power Requirements: 3 Phase, 208V, 150 Amps
  • 3 Hot Legs, 1 Ground (no neutral required)
  • 150 ft Feeder Cable with Camlock Connectors

Production Switcher

• Grass Valley K-Frame Switcher
  • Kayenne 4-Stripe, 35-Button Panel
  • 5 M/E available
  • 64 Inputs / 32 Outputs
  • FlexiKey™, Double Take, Chroma Key
  • (6) Internal DPMs, (1) External DPM
  • Integrated Image Store

Replay & Playout

• (2) EVS XT3 6-Channel LSM Servers
• (1) EVS XS 4-Channel Spotbox with Lance Controller
• (1) EVS X-File3 for file transfer
• (1) EVS X-Hub for networked sharing
• Configured for:
  • (3) 10-Channel EVS positions
  • (1) 4-Channel Spotbox

Routing & Terminal Gear

• Grass Valley NVision 3G Router
  • 144×288 Video Matrix
  • 32×32 Embedding / De-embedding
• (16) AJA Frame Sync / Cross Converters
• TSL TallyMan Tally Interface
• Multiview Capacity: 160×28

Camera Package

• (8) Grass Valley LDX80 Premiere Cameras
• (5) Grass Valley LDK4475 Super XPanders w/ 7” Viewfinders
• (6) LDK4426 Fiber Triax Converters
• Fujinon Lens Kit Includes:
  • (5) 77×9.5 HD Field Zooms
  • (3) 22×7.6 ENG Lenses
  • (1) 17×7.6 ENG Lens
  • (1) 1×4.8 Wide Angle Lens
• (5) Vinten Vector 70 Pan Heads with Tripods
• (3) Handheld Tripod Systems
• Wired for 10 CCUs

Audio Facilities

• Calrec Artemis Light Digital Console
  • 40 Faders
  • 240 DSP Inputs
  • 64×64 Analog I/O
  • 128×128 AES Digital I/O
  • 128×128 MADI

Communications Infrastructure

• RTS ADAM Matrix Intercom (80×80)
  • 16 RVON Channels
  • 12 Powered Intercom Channels
  • 8 Powered IFB Channels
• Additional Gear:
  • (12) RTS BP325 Dual Listen Belt Packs
  • (8) RTS 4030 IFB Boxes
  • (12) Single Muff Headsets
  • (6) Dual Muff Headsets
  • (4) RTS Telephone Interfaces
  • (4) QKT Audio Couplers

A/V Support Package

• (5) HMD26 Announcer Headsets
• (5) Studio Tech Announcer Boxes
• (5) MD46 Stick Microphones
• (6) MKH416 Shotgun Microphones
• (6) MKH807 Long Shotgun Microphones
• (4) MKH418 Stereo Shotgun Microphones
• (4) 15” SDI Field Monitors
• (4) 21” SDI Field Monitors
• (2) LED Lighting Kits

Cable Infrastructure

• 7000’ Triax Camera Cable
• 4000’ DT12 Audio Multicore
• (1) 1000’ TAC-12 Fiber Run
• (1) 500’ TAC-4 Fiber Run

Why MU-24 Stands Out

MU-24 is a right-sized remote production truck built for teams that need full broadcast-grade performance in a leaner package. With flexible camera capacity, modern routing and replay systems, and integrated comms, this unit thrives at fast-paced live productions that demand speed, agility, and rock-solid signal control.

Ideal Applications

• Regional Sports Broadcasts
• Corporate and Townhall Events
• Concerts & Small Music Festivals
• Worship & House of Worship Services
• Flypack Companion or Standalone Remote Studio
