MU-14 53’ 3G Single Expando Production Truck Overview

The MU-14 is the most advanced and largest-capacity mobile unit in the Live Media Group fleet. Designed for top-tier UHD/HDR broadcast environments, MU-14 delivers unmatched switching power, high-density EVS replay, and expansive multichannel routing. Built for large-scale multi-camera productions, MU-14 offers a 9 M/E switcher, 120-channel EVS infrastructure, and fully integrated comms, audio, and fiber workflows—ready for national sports, music specials, and major live events.

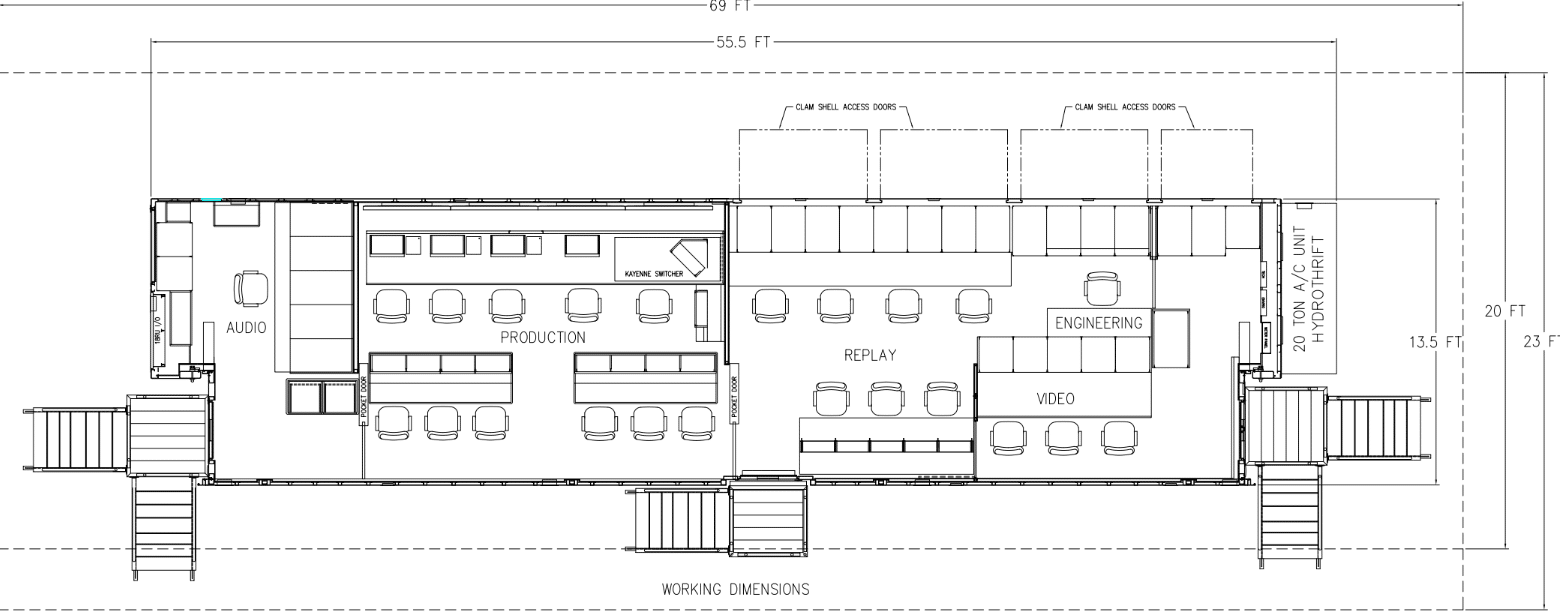

Dimensions and Configuration

• Truck Length: 53 ft
• Expanded Dimensions: 49 ft (L) x 5 ft (W)
• Overall Length: 78 ft
• Width (Expanded): 13.5 ft
• Gross Vehicle Weight: 80,000 lbs

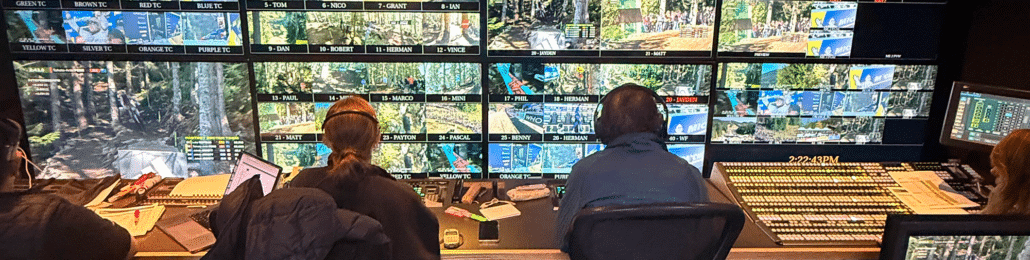

Production Capabilities

Video Switcher

• Grass Valley K-Frame 3G Switcher
  • Kayenne 4-Stripe, 35-Button Panel
  • 9 M/E
  • 176 Inputs / 72 Outputs
  • FlexiKey, Double Take, Chroma Key
  • 12 IDPM, 4 EDPM, 2D DPM
  • Image Store with Movies
  • M/E View Enabled
  • RGB Color Corrector

Replay System

• (4) EVS XTVia 12-Channel LSM Servers (Dual User)
• (1) EVS XTVia 6-Channel Spotbox with Lance Controller
• (1) EVS X-file3 with 10G File Network
• (1) EVS Via Xhub
• Wired for 120 Channels of EVS

Routing and Terminal Infrastructure

• Evertz EQX 3G Video Router (518×684 Matrix)
  • 112×128 Embedding/Dis-embedding
  • 18 Internal Frame Syncs with De-embedding
  • 16×16 RTR Fiber I/O
  • 16×8 Mux to/from B Unit
  • 8×8 Mux to/from Booth
• Evertz EMR Audio Router
  • 1152×1152 MADI
  • 192×192 AES
  • 96×96 Analog
• Multiview Capacity: 304×30
• Frame Syncs:
  • (45) For-A HDR U/D/C with Color Correction
  • (40) EVS Neuron HDR Frame Syncs with Custom LUT & CC

Camera Equipment

• (12) Sony HDC3500 UHD-HDR Cameras
• (7) Sony HDLA1505 Large Lens Adapters
• Lens Package:
  • (7) Canon UHD Digisuper UJ111x8.3 with Stabilizer
  • (2) Canon CJ25ex7.6 UHD ENG
  • (2) Canon CJ20ex7.6 UHD ENG
  • (1) Canon CJ15ex4.3 UHD Wide Angle ENG
• (7) Vinten Vector 750 Pan Heads w/ HDT2 Tripods
• (4) Cartoni Focus 20 Pan Heads w/ Tripods
• Wired for 20 CCUs
• Other camera and lens configurations available

Audio Facilities

• Calrec Apollo Digital Surround Sound Console
  • 144 Faders with 12 Dual-Fader Layers
  • 148×148 Analog
  • 128×128 AES
  • 512×512 MADI (8 ports)
  • 64×64 DANTE Channels
  • Integrated Waves Broadcast Suite Software

Communications Infrastructure

• 256×256 RTS Adam Matrix Intercom
  • 64 OMNEO Channels
  • 16 RVON Channels
  • 64 MADI Channels
  • 12 Powered PL Channels
  • 12 Powered IFB Channels
• (4) RTS Telephone Interfaces
• (4) QKT Audio Couplers
• (20) RTS BP325 Belt Packs
• (12) RTS 4030 IFB Belt Packs
• (20) Beyer DT108 Single Muff Headsets
• (10) Beyer DT109 Dual Muff Headsets

A/V Support Inventory

• (6) HMD26 Announcer Headsets
• (6) Studio Tech Announcer Boxes
• (6) MD46 Stick Microphones
• (6) MKH416 Shotgun Microphones
• (6) MKH807 Long Shotgun Microphones
• (6) MKH418 Stereo Shotgun Microphones
• (6) 15” SDI Monitors
• (6) 21” SDI Monitors
• (2) LED Light Kits

Cable Inventory

• 7000’ SMPTE Fiber
• (2) 150’ 6-Wire SMPTE Looms
• 3000’ DT12 Audio Multicore
• 1000’ 6-Pair Audio Snake
• 500’ 2-Pair Audio Snake
• 5000’ Audio Cable
• 4500’ Single Coax
• (6) 100’ 10-Wire Coax Looms

Why MU-14 Stands Out

MU-14 sets a new standard in remote production capabilities with the highest M/E count, largest I/O matrix, and deepest EVS channel support in the fleet. It is tailored for the most demanding live events where reliability, flexibility, and production power are critical. Ideal for multi-platform content creation, it serves national sports, international broadcasts, and ultra-high-capacity events with ease.

Applications

• UHD and HDR Sports Broadcasts
• Multi-Stage Music Events
• Major Live Entertainment Specials
• Remote Studio Facilities
• Simultaneous Stream & Linear Broadcasts
