MU-29 | 40’ 3G REMI-Only Single Expando Truck

Lightweight REMI Production Unit for High-Efficiency Remote Broadcast Workflows

The MU-29 is a versatile, REMI-dedicated 3G production truck designed to support remote switching, monitoring, and audio workflows with a compact physical footprint and expanded interior workspace. With robust routing, multiview capabilities, and support for 8 CCU-controlled cameras, MU-29 is an ideal mobile solution for live sports, entertainment, government, and news events using centralized REMI workflows. Built around a single-expando design and efficient 1-phase power, it’s made for environments where space, speed, and simplicity are essential.

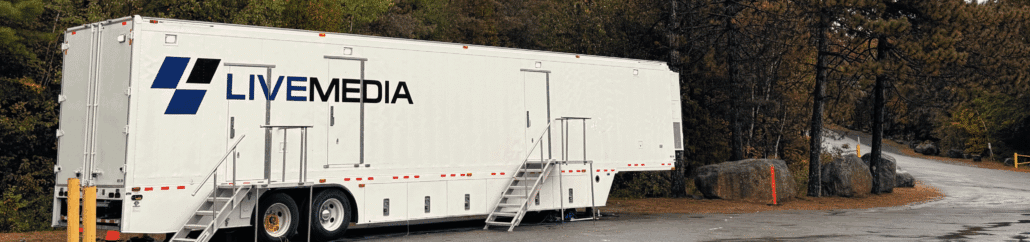

Truck Overview

• Trailer Length: 40 ft

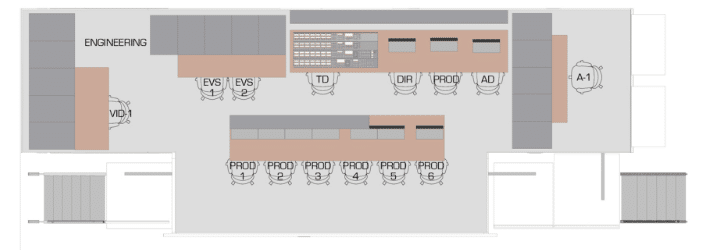

• Working Dimensions: 40’ L x 21’ W x 13.5’ H
• Overall Length with Tractor: 65 ft
• GVW: 65,000 lbs
• Power Requirements:
  • 1 Phase, 208 Volts, 200 Amps
  • 2 Hot Legs, 1 Ground (No Neutral)
  • 150’ Feeder Cable with Camlock Connectors

Production System

• Grass Valley K-Frame Switcher
  • Karrera 3-Stripe, 35-Button Control Panel
  • 3.5 M/E
  • 64 Inputs / 48 Outputs
  • FlexiKey™, Double Take, Chroma Key
  • (4) iDPMs
  • Integrated ImageStore

Replay Capabilities

• Wired for:
  • (2) 6-Channel EVS LSM Servers
  • (1) 4-Channel Spotbox

Routing & Terminal Infrastructure

• NVision NV8280 3G/HD Video Router
  • 192×252 Routing Matrix
  • 48×48 Embedding / De-embedding
• Frame Syncs:
  • (30) For-A U/D/C Frame Syncs with Color Correction
• Multiview Capacity: 160×32

Camera Package

• (8) Grass Valley LDX86 WorldCam Cameras
• (5) Grass Valley Super XPanders with 7” Viewfinders
• (8) Grass Valley LDK4426 Fiber Triax Converters

Lens Kit Includes:

• (3) Canon 88×8.8 HD Box Lenses
• (1) Canon 77×9.5 HD Box Lens
• (1) Canon 75×9.3 HD Box Lens
• (2) Fujinon 22×7.6 ENG Zoom Lenses
• (1) Fujinon 23×7.6 ENG Lens
• (1) Canon 11×4.7 Wide Angle ENG Lens
• Wired for 8 CCUs

Audio Facilities

• Calrec Summa Digital Mixing Console (Bluefin2 Engine)
  • 48 Faders
  • 180 DSP Paths
  • 64×64 Analog I/O
  • 12×12 AES I/O
  • 320×320 MADI Routing
  • 64×64 Dante IP Integration

Intercom & Communications

• RTS ADAM-M Digital Matrix (150×150)
  • 16 RVON Channels (VoIP)
  • 16 MADI Channels
  • 64 OMNEO Channels
  • (8) Powered Intercom Channels
  • (8) Powered IFB Channels

Comms Inventory:

• (11) RTS BP325 Dual Listen Belt Packs
• (9) RTS 4030 IFB Boxes
• (9) Beyer DT108 Single Muff Headsets
• (3) Beyer DT109 Dual Muff Headsets
• (8) Telephone Interfaces
• (3) QKT Audio Couplers

A/V Support Inventory

• (5) HMD26 Announcer Headsets
• (5) Studio Tech Announcer Boxes
• (5) MD46 Stick Microphones
• (6) MKH416 Shotgun Microphones
• (6) MKH807 Long Shotgun Microphones
• (4) MKH418 Stereo Shotgun Microphones
• (4) 15” SDI Confidence Monitors
• (4) 21” SDI Confidence Monitors
• (1) LED Lighting Kit

Cable Infrastructure

• 7000’ Triax Cable
• (1) 6x Triax Mult
• 3000’ XLR Audio Cable
• 3000’ Single Coax
• 2100’ DT12 Audio Multicore
• (1) 250’ TAC-12 Fiber
• (3) 450’ TAC-12 Fiber
• (2) 1000’ TAC-12 Fiber

Why MU-29 Stands Out

MU-29 delivers a cost-effective, high-performance REMI solution in a compact footprint. It enables full field production capabilities—switching, comms, audio mixing, camera control—while handing off final mixing and switching to centralized master control. Its 3.5 M/E switcher, rich camera kit, and Calrec Summa console provide broadcast-level quality and flexibility without the overhead of full mobile studio trucks.

Ideal Applications

• Remote Production & At-Home Workflows (REMI)
• University Sports and Lower-Tier Leagues
• Mid-Size Live Events & Concerts
• Corporate and Education Broadcasts
• Cost-Conscious, Scalable Streaming Events
